Upto 450kv Outdoor MV Voltage Transformer for Electric Instrument

    Buy cheap Upto 450kv Outdoor MV Voltage Transformer for Electric Instrument from wholesalers

    Buy cheap Upto 450kv Outdoor MV Voltage Transformer for Electric Instrument from wholesalers
    • Buy cheap Upto 450kv Outdoor MV Voltage Transformer for Electric Instrument from wholesalers

    Upto 450kv Outdoor MV Voltage Transformer for Electric Instrument

    Ask Lasest Price
    Brand Name : Chuangyin
    Model Number : CYEVT1-110D
    Certification : KEMA,SGS,TUV,UL
    Price : Negetiable
    Payment Terms : L/C, T/T, D/P, D/A, Western Union, MoneyGram
    Supply Ability : 36,000,00pcs per year
    • Product Details
    • Company Profile

    Upto 450kv Outdoor MV Voltage Transformer for Electric Instrument

    Upto 450kv Outdoor Use Electric Instrument voltage transformer


    1Product introduction


    Conduct the principle of capacitance voltage division, best performance compare to traditional electromagnetic voltage transformers, small volume, light weight, tight construction characters; utilizing fiber transmission, absolute electronic insulation. The products accord with standard IEC60044-8 , IEC61850-9,GB/T20840.8-2007, compatible with electronic metering, computer measuring protection devices. Custom design service provided.


    2. Technical Data:


    Rated primary voltage : 110/3 kV

    Rated digital output: 0x2D41 (digits)

    • Accuracy for measuring winding : 0.2
    • Accuracy for protection winding : 3P
    • Rated Frequency: 50Hz
    • Rated insulation level: 126/200/450kV
    • Ambient temperature : -25℃-50℃
    • Ambient humidity : ≤RH95%(25 )
    • Altitude : ^ 2000m( Can devise according customer* s requirement)
    • Installation site : outdoor

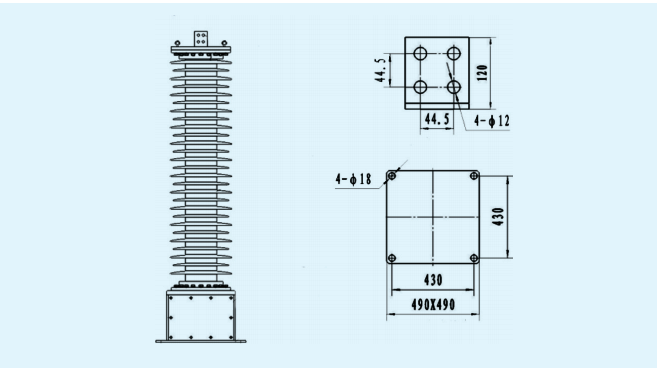

    3. Outline Drawing:



    Quality Upto 450kv Outdoor MV Voltage Transformer for Electric Instrument for sale
