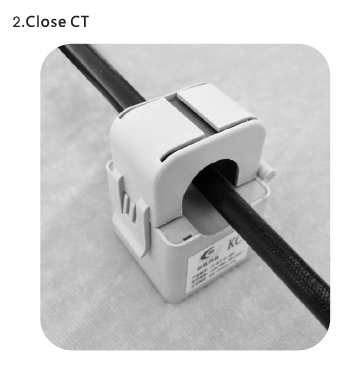

75-600A 50Hz Split Core Current Transformer / Open type CY-KCT01A

1. Product Introduction:

The "KCT01A Split Core Current Transformers" are designed for easy installed without the need for dismantling
the primary busbar or cables. They output 5A or 1A standard secondary currents which can directly match the
input terminals of electric energy meter and measure and control instruments in power system. They are applied
to electric measure and control equipments like power electric energy meter, switch cabinet, control cabinet, etc.

Feature:

1. Small size,light weights and exquisite appearance
2. Easily install, no need to disconnect primary busbar
3. With over-voltage protection in open circuit

Application:

1. Electric energy meter
2. Smart grid
3. Switch cabinet
4. Power measurement and control system

Attention:

1. The iron core binding surface has to be waterproof.
2. The iron core surface needs to be polished to remove the rust and coated with rust-proof grease when the core surface rusted.
3. Keep clean and without debris on core binding surface.

Company information:

Shenzhen Chuangyin Co., Ltd has three manufacturing bases ,they are Jiangxi Chuangyin Co.,Ltd, Zhuhai Chuangyin Co.,Ltd and Joint-Venture Adex-Chuangyin Electric Co.,Ltd(Bangladesh); with 40,000 square meters of modern standard workshop and a number of first-class production line and test equipments, by many years’ experience for three dedicated engineering teams, the annual output of medium &low current transformer and voltage transformer is more than 36000 sets and CT, relay is more than 25 million pcs.

Since established in 2002,Chuanyin has been operating international management system and viewing quality as our life, the pass rate of products is always 99.9999%.we also have established a strict quality control system from material to whole process control. Factories and products have passed ISO9001:2015, ISO 14001：2015， ISO 45001:2018 UL, CQC, CE, KEMA CNAS certificates.

ISO 9001-2015 COMPLETA.pdf

Chuangyin’s product is well known with high accuracy, good stability, high efficiency, reasonable price and on-time delivery. With strong R&D strength and first-class product, good reputation has been gotten from domestic and oversea market. Customers are throughout more than 30 countries in the word. Chuangyin has become the one of largest and professional manufacturer of CT,PT and relay in China.
